Phase modulator event generator block

Contents

• Phase modulator event generator block
  • Palette
  • Description
  • Dialog box
  • Default properties
  • Interfacing function
  • Computational function
  • Authors

Palette

• Sources - Sources palette

Description

This block is able to do the generation of phase modulated events.
For each generated events, the phase (that must be in -2*Pi,2*Pi) is read on the regular input port.
See the compiled super-block content of PCLOCK_f in order to know how to connect the event ports of that block.

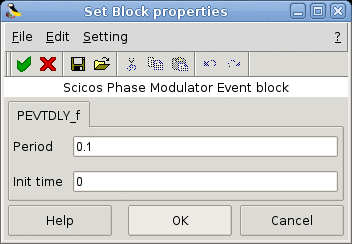

Dialog box

• Period
  The period of the event generation.
  Type 'vec' of size 1.

• Init time
  The initial time when the event generation begins.
  Type 'vec' of size 1.

Default properties

• always active: no
• direct-feedthrough: no
• zero-crossing: no
• mode: no
• regular inputs:
  - port 1 : size [1,1] / type 1

• number/sizes of activation inputs: 1
• number/sizes of activation outputs: 3
• continuous-time state: no
• discrete-time state: yes
• object discrete-time state: no
• name of computational function: pevtdly

Interfacing function

• MODNUMCOS/macros/scicos_blocks/Sources/PEVTDLY_f.sci [view code]

Computational function

• MODNUMCOS/routines/sources/pevtdly.c (Type 4) [view code]

Authors

IRCOM Group Alan Layec
